Horizontal End Suction - Back Pull-Out
Horizontal End Suction - Back Pull-Out Pumps
Explore our complete range of centrifugal chemical process pumps designed for demanding industrial applications.

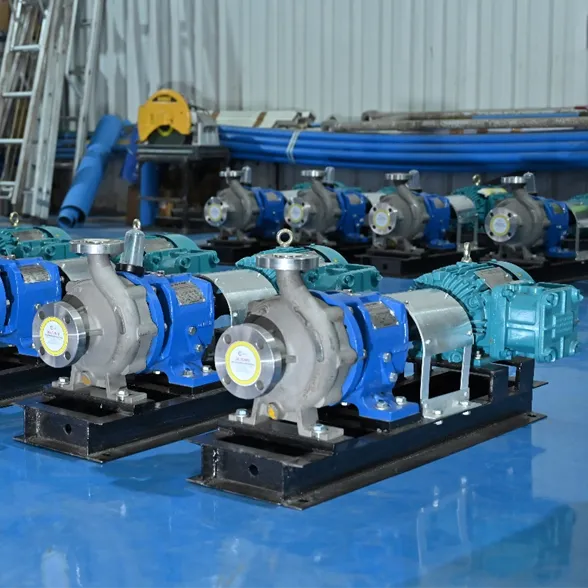

Chemical Process Pump
IGE Chemical Process Pumps are engineered as per ANSI B73.1 standards for handling corrosive, abrasive, and process fluids across diverse industries. Designed with back pull-out construction and semi-open impellers, these pumps ensure reliable performance and ease of maintenance.

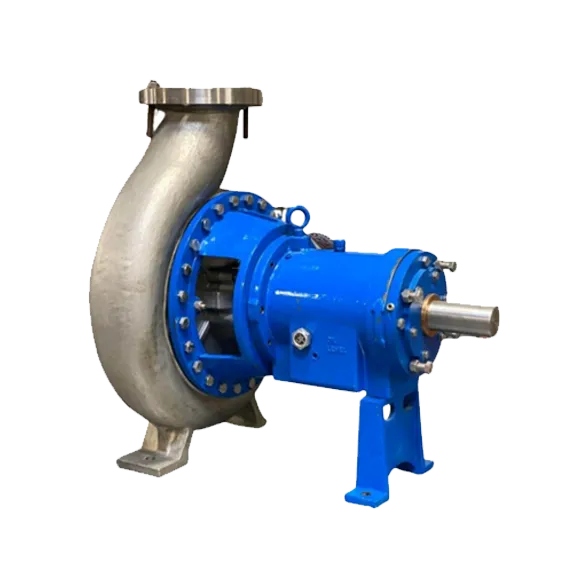

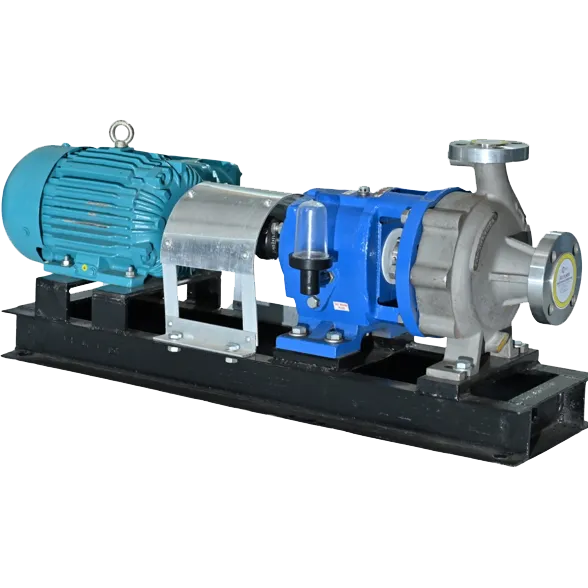

Available Series
Common Features (Same for all Series)
- ANSI B73.1-dimensional standards
- Back pull-out design for easy maintenance
- Semi-open impeller handling up to 4–5% suspended solids
- Multiple mechanical seal arrangements available
- Suitable for corrosive and aggressive chemicals
- Designed pressure up to 20 kg/cm²
- Heavy-duty bearing arrangement
- Long service life and high reliability
- Available with gland packing and mechanical seals
Applications
Acids & Chemicals
Sulphuric Acid, Brine, Nitric Acid, Sodium Hydroxide, Hydrochloric Acid, Acetic Acid, Phosphoric Acid, Sodium Chloride, Ammonium Chloride and more.
Petrochemicals
Benzene, Toluene, Ammonia, Methanol, Vinyl Chloride, Ethylene Glycol, Styrene, Xylene and other process fluids.
Pulp & Paper
Black Liquor, Green Liquor, White Liquor, Chlorine Dioxide, Dregs Washer and related applications.
Breweries
Sparge Water, Chilled Water, Beer Transfer, Alcohol Transfer, Spent Grain Liquor and process utilities.
Primary Metal
Copper Cyanide, Ferric Chloride, Ferrous Sulphate, Copper Sulphate, Silver Cyanide and related chemicals.
General Industry
Condensate, Deionized Water, Hot Oil, Cooling Tower Water, River Water, Pond Water and Utility Services.
All Pumps Are Available In Below Mocs
| Material | ASTM Casting Grade |
|---|---|
| Cast Steel | WCB |
| SS 304 | CF8 |
| SS 316 | CF8M |
| SS 316L | CF3M |
| CD4MCu | CD4MCu |
| Alloy 20 | CN7M |
| Carpenter 20 | CK-20 |
| Duplex SS | Grade 4A / 5A / 6A |
| Hastelloy B | N12MV |
| Hastelloy C | CW12MW |
| Nickel (100%) | CZ-100 |
| Monel | M-35 |
| Ni-Hard | Ni-Hard (Ni-Resistance) |
